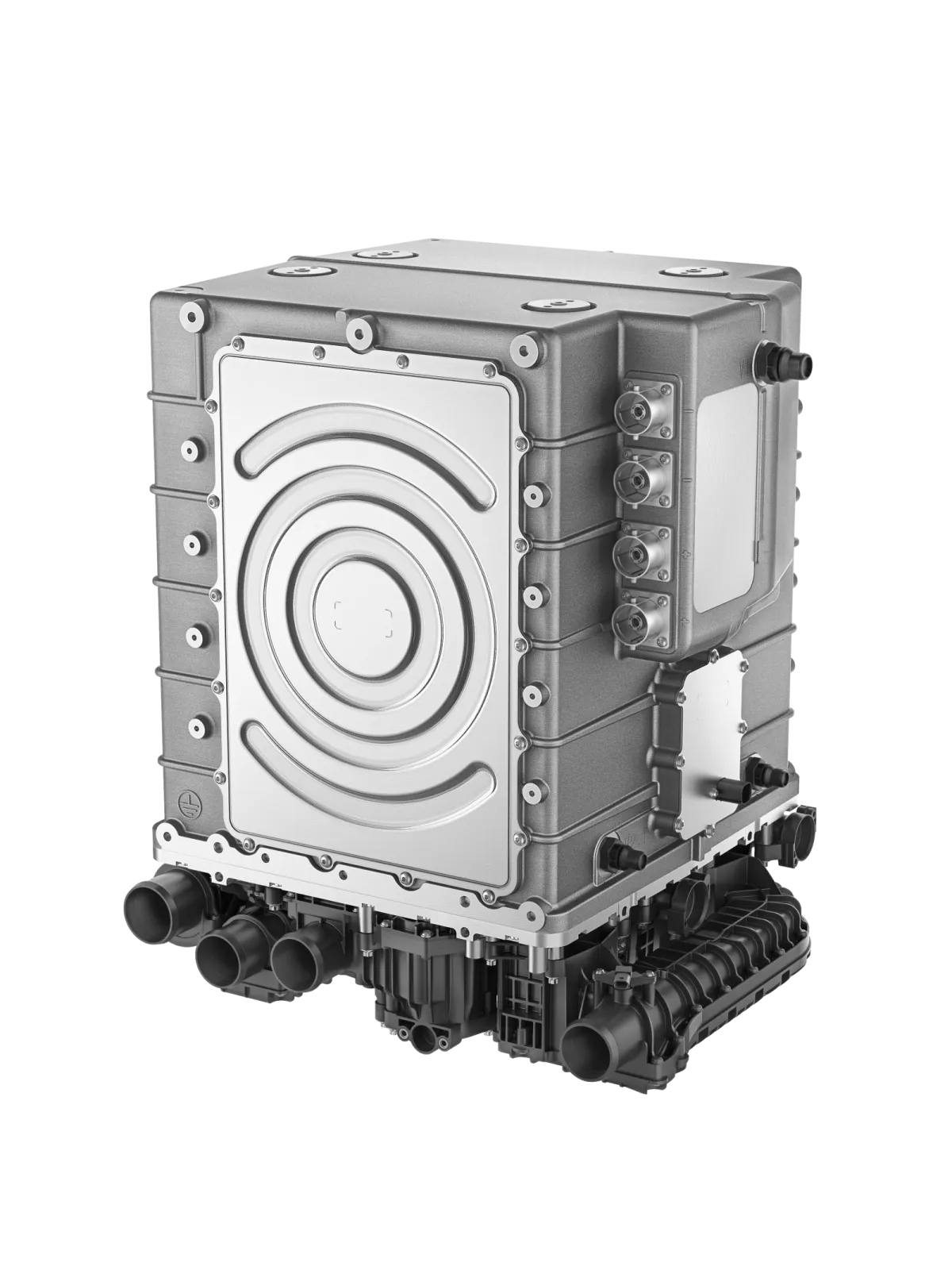

PEMFC stack module for applications with high power requirements (>150 kW) in heavy-duty, rail and marine applications.

The NM12 Twin PEMFC stack module is currently available with a cell count of 598 cells (2x 299 cells). At 2.5 bara operating pressure it achieves a power output of up to 205 kWel.

Profile

• IP (6KX, X6K, X7) housing with EMC shielding

• Compact integrated cell voltage monitoring (CVM)

• Integrated media control, water separators and media monitoring

• Robust sensors and actuators acc. to automotive standards

• Stack module validated acc. to IEC 62282 and GB/T 33978

• Customer-specific stack solutions in power levels of up to 205 kWel

• Hydrogen-air operation

• Liquid-cooled

• Pressurized operation up to 2.5 bara

• Developed for a compact stack and system design
